MGN12C 臺灣HIWIN滑塊 HIWIN導軌 臺灣上銀滑塊導軌

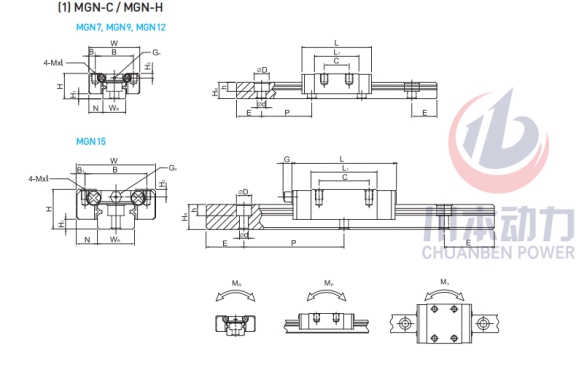

組件尺寸 | H | 13 | mm |
H1 | 3 | mm | |
N | 7.5 | mm | |
滑塊尺寸 | W | 27 | mm |
B | 20 | mm | |
B1 | 3.5 | mm | |
C | 15 | mm | |
L1 | 21.7 | mm | |
L | 34.7 | mm | |
G | - | mm | |
Gn | 1.4 | mm | |
MxL | M3*3.5 | mm | |
H2 | 2.5 | mm | |
導軌尺寸 | WR | 12 | mm |
HR | 8 | mm | |
D | 6 | mm | |
h | 4.5 | mm | |
d | 3.5 | mm | |
P | 25 | mm | |
E | 10 | mm | |
導軌的固定螺栓尺寸 | 導軌的固定螺栓尺寸 | M3*8 | mm |
基本動額定載荷 | C | 290 | kN |
基本靜額定載荷 | C0 | 400 | kN |
容許靜力矩 | MR | 2.6 | kN-m |
MP | 1.4 | kN-m | |
MY | 1.4 | kN-m | |
重量 | 滑塊 | 34 | g |
導軌 | 0.65 | kg/m |
